Oracle Performance

Benchmarking Google Cloud SQL instances

3 min read

Dec 10, 2015

Google Cloud SQL is a fully managed database service that makes it easy to set-up, maintain, manage, and administer your relational MySQL databases in the cloud. Cloud SQL allows you to focus on your applications rather than administering your databases. Hosted on Google Cloud Platform, Cloud SQL provides a database infrastructure for applications running anywhere. To evaluate the performance of Google’s Cloud SQL Instances, we ran the tpcc-mysql benchmarking utility with a scale factor of 500 warehouses. The purpose of running tpcc-mysql on each system was to determine the throughput of each instance under varying loads (number of connections or threads). While the benchmark tests were being run, we took regular snapshots of the following data using MySQL Workbench.

Number of select transactions executed per second
Number of insert transactions executed per second
Number of update transactions executed per second
InnoDB Disk Reads – MB/s
InnoDB Disk Reads – MB/s

Testing Methodology

Following is the methodology used for performing the tpcc benchmarks:

1. All the testing was done with the tpcc-mysql package, with a scale factor of 500 Warehouses.
2. All testing was done using a Google Compute VM
  - Ubuntu 15.04 machine
  - Specifications: n1-standard-4 - 4 vCPU, 15 GB Memory
  - Zone: us-central1-a
3. Following Cloud SQL instances were bench-marked:

Cloud SQL Instance	Cloud SQL Instance Type	Zone	Memory
D8	Standard instances	us-central1-a	4G
D16	Standard instances	us-central1-a	8G
D32	Standard instances	us-central1-a	16G
db-n1-standard-4	Performance instances - Standard	us-central1-a	15G
db-n1-standard-8	Performance instances - Standard	us-central1-a	30G
db-n1-standard-16	Performance instances - Standard	us-central1-a	60G
db-n1-highmem-2	Performance instances - Hi Memory	us-central1-a	13G
db-n1-highmem-4	Performance instances - Hi Memory	us-central1-a	26G
db-n1-highmem-8	Performance instances - Hi Memory	us-central1-a	52G
db-n1-highmem-16	Performance instances - Hi Memory	us-central1-a	104G

We used 100, 200, 300 and 400 concurrent user sessions (threads).
We used a scale factor of 500 warehouses which roughly transforms to 50 GB data in the database.
We performed four iterations of tests per instance by varying the number of connections (threads) per run. Tests were performed using the 100, 200, 300 and 400 threads.
For each set of user sessions, we performed a half hour-long run, gathering data for new order transactions every 10 seconds.
Following data was gathered:
- Throughout expressed as tpm-C - Orders Processed per Minute
- Number of select transactions executed per second
- Number of insert transactions executed per second
- Number of update transactions executed per second
- InnoDB Disk Reads – MB/s
- InnoDB Disk Reads – MB/s

Benchmarking Results - DML Transactions Per Minute

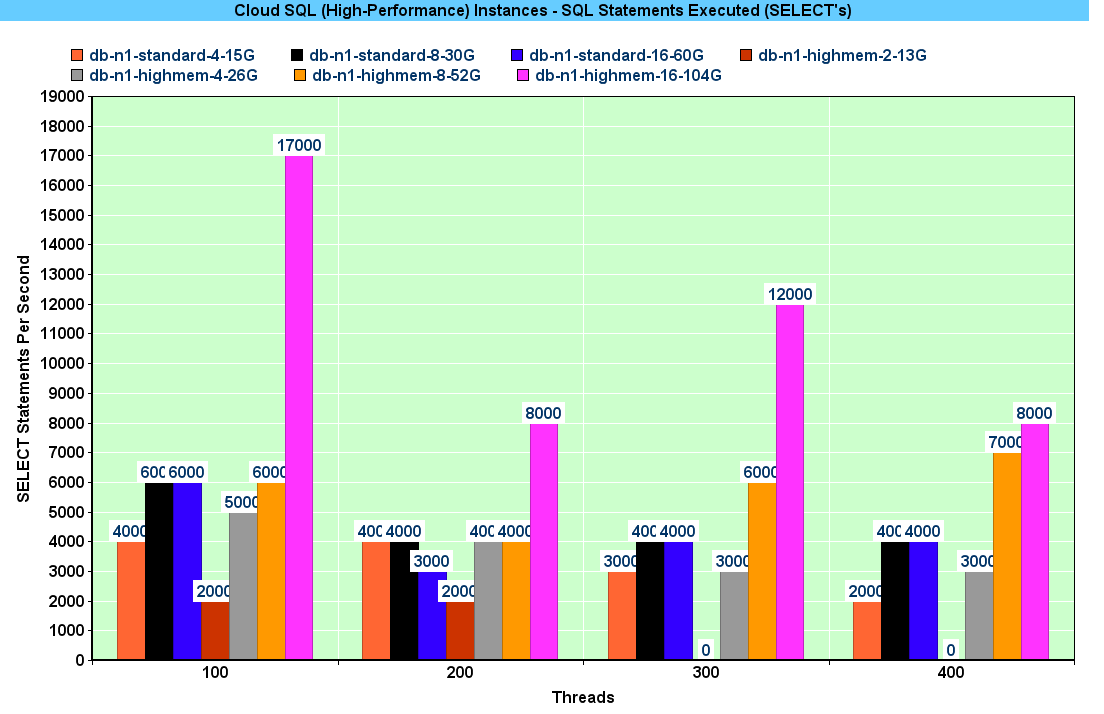

The following graph represents the transactions for each instance under varying loads for SELECT transactions.

For 100, 200 and 300 threads db-n1-highmem-16 outperformed the rest by a large margin
For 400 threads db-n1-highmem-8 and db-n1-highmem-16 performed the similar
db-n1-standard-8 and db-n1-standard-16 performed the same for all thread counts
Rest of the instances performed similarly

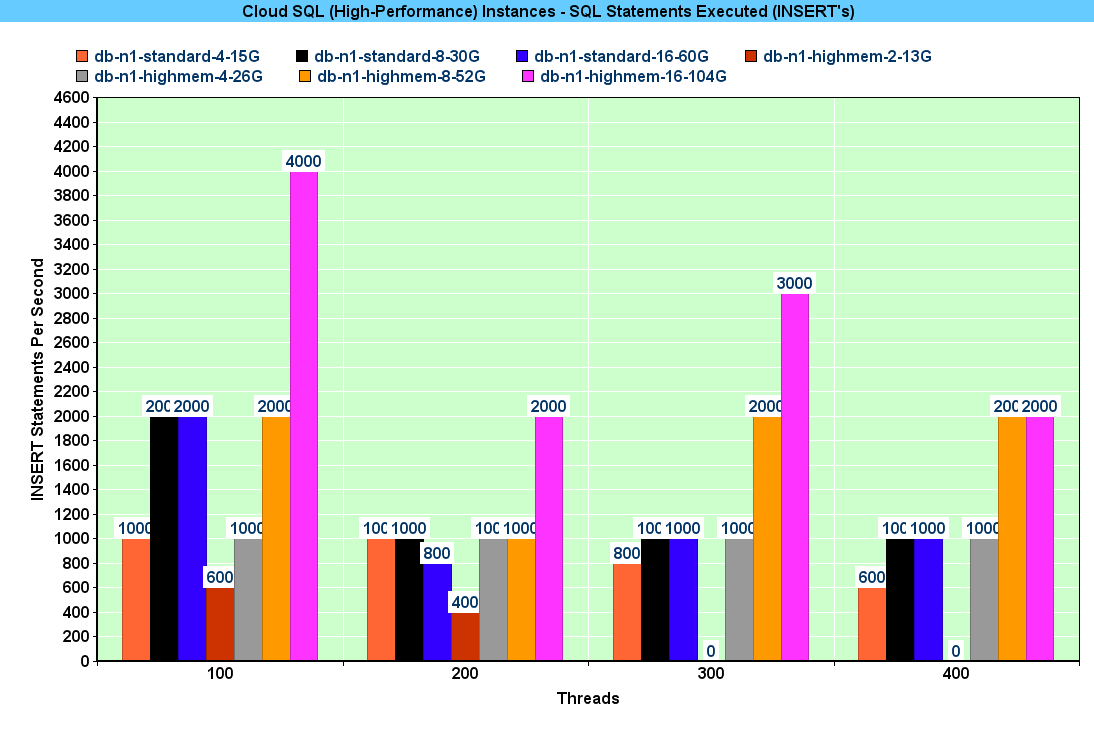

The following graph represents the transactions for each instance under varying loads for INSERT transactions.

For 100, 200 and 300 threads db-n1-highmem-16 outperformed the rest by a large margin
For 400 threads db-n1-highmem-8 and db-n1-highmem-16 performed same
db-n1-himem-4, db-n1-standard-8 and db-n1-standard-16 performed the same for all thread counts
Rest of the instances performed similarly

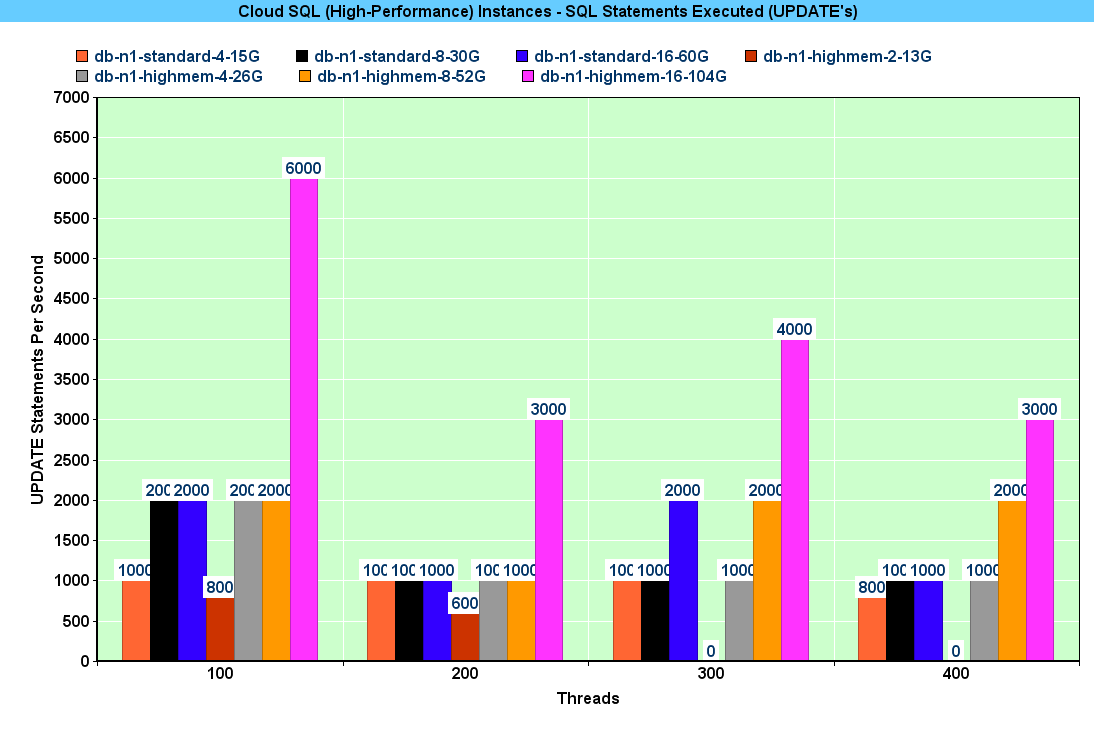

The following graph represents the transactions for each instance under varying loads for UPDATE transactions.

For 100, 200 and 300 threads db-n1-highmem-16 outperformed the rest by a large margin
db-n1-standard-8 and db-n1-standard-16 performed the same for all thread counts
Rest of the instances performed similarly

Conclusion

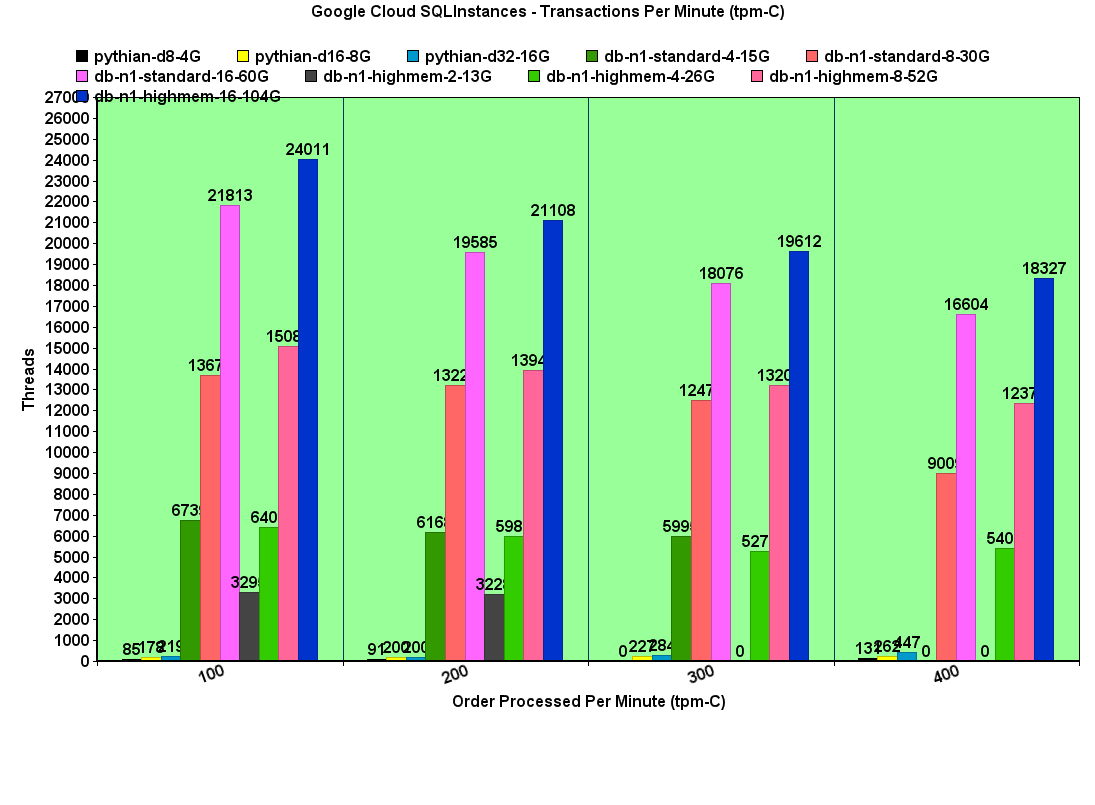

The following graph represents the overall throughput of all instances under varying loads. A few notable conclusions follow.

The greatest throughput was achieved at 100 threads
db-n1-standard-16 (60G) performed very close to db-n1-himem-16 (104G).
db-n1-himem-8 (52G) performance was appreciably lower than db-n1-standard-16 (60G)
Google Cloud SQL High Performance instances performed significantly better than currently being offered Google Cloud SQL Standard Class Instances by a scale of 100-200%
